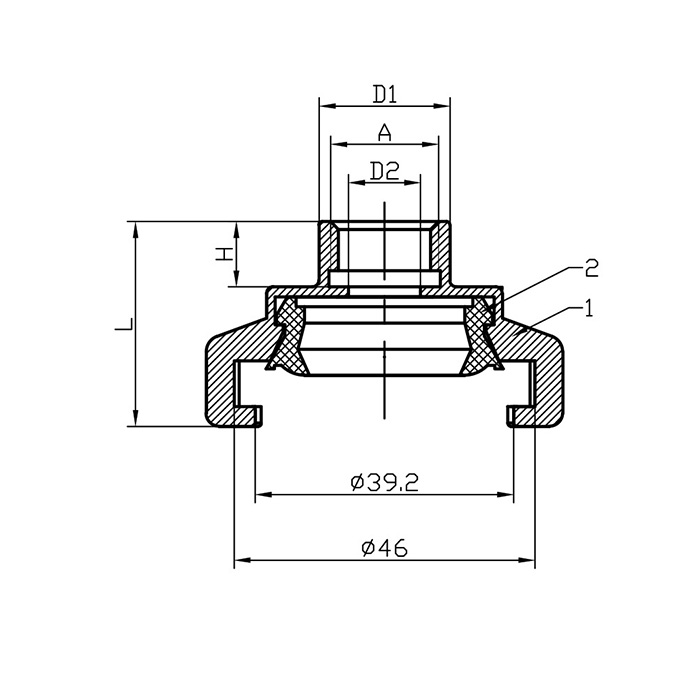

| DN | A | D1 | D2 | H | L |
| 3/8 | G3/8 | 20 | 11 | 10 | 30.8 |
| 1/2 | G1/2 | 24.5 | 14 | 9.5 | 30.8 |
| 3/4 | G3/4 | 29.8 | 20 | 9.7 | 31 |
| 1 | G1 | 36 | 23.3 | 10.5 | 31.8 |
| 11/4 | G11/4 | 45.5 | 24.5 | 13 | 37 |
| 11/2 | G11/2 | 51.5 | 25 | 13.5 | 36.5 |
1.BODY：BRASS
2.SEAL GASKET：NBR
| DN | A | D1 | D2 | H | L |
| 3/8 | G3/8 | 20 | 11 | 10 | 30.8 |
| 1/2 | G1/2 | 24.5 | 14 | 9.5 | 30.8 |
| 3/4 | G3/4 | 29.8 | 20 | 9.7 | 31 |
| 1 | G1 | 36 | 23.3 | 10.5 | 31.8 |
| 11/4 | G11/4 | 45.5 | 24.5 | 13 | 37 |
| 11/2 | G11/2 | 51.5 | 25 | 13.5 | 36.5 |
