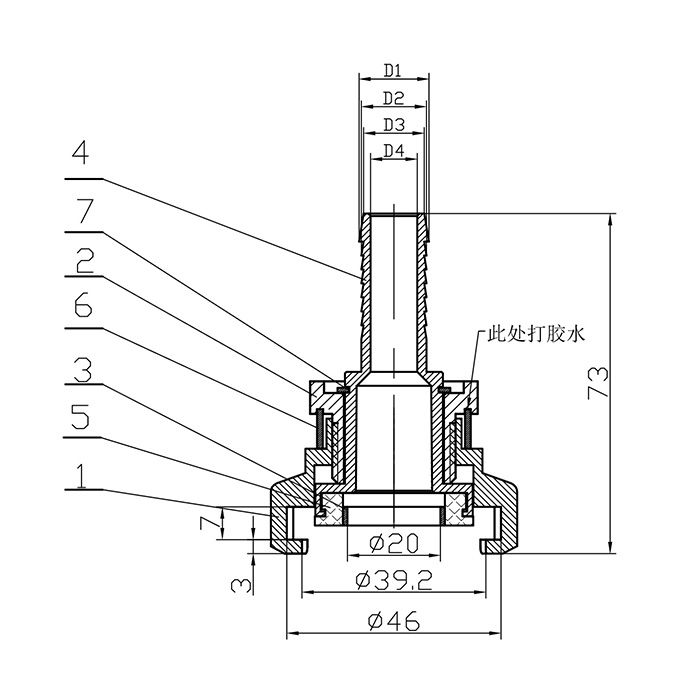

| DN | D4 | D1 | D2 | D3 | L |
| 1/2 | 11 | 15 | 14 | 13 | 73 |
| 3/4 | 16.4 | 21.3 | 19.8 | 18.8 | 80 |
| 1 | 20.4 | 26.7 | 26.4 | 24.8 | 76.9 |
1.阀体(1)：CW617N
2.阀帽(1)：CW617N
3.铜卡圈(1)：H62
4.出水口(1)：CW617N
5.垫片1)：NBR
6.铜卡圈(1)：H62
7.卡圈(1)：不锈钢304
| DN | D4 | D1 | D2 | D3 | L |
| 1/2 | 11 | 15 | 14 | 13 | 73 |
| 3/4 | 16.4 | 21.3 | 19.8 | 18.8 | 80 |
| 1 | 20.4 | 26.7 | 26.4 | 24.8 | 76.9 |
